Power over Ethernet

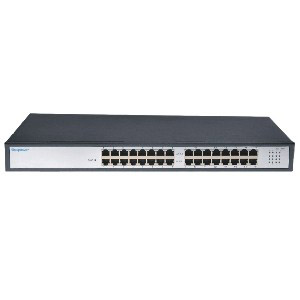

16-Port 10/100M PoE Midspan injector (IEEE802.3af)

16-Port 10/100M PoE Midspan injector (IEEE802.3af)
Per port power:15W/320mA
Pin: 4/5(+),7/8(-)
  • Details
  • Download
  • Main feature:
    Specially design for delivering power for wireless cameras and  AP over cat-5 cabling.
    10/100Mbps “Data input”
    10/100Mbps “Data + Power output”
    Complies with IEEE 802.3af
    Supports PoE power up to 15.4 Watts
    Remote power feeding up to 100 meters
    1U rack design, suitable for cabinet-mounted

    Specification:

    Product

    10/100M POE Midspan Injector

    Model

    PSEM-16T-300

    Network port

    16RJ45 ports

    PoE Power supply type

    Data provided over pairs over 1/2and 3/6 ,Power over spare pairs4/5(+) and 7/8 (-)

    Network Media

    10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

    100BASE-TX: UTP category 5, 5e cable (maximum 100m)

    1000BASE-TX: UTP category 5, 5e cable (maximum 100m)

    Performance specification

    PoE output voltage 53.5V

    PSE5201/PSE5201-at:operating rate 10/100Mbps

    PSE5201G/ PSE5201G-at:operating rate 10/100/1000Mbps

    Network port protection: Match with IEC61000-4-2(ESD)

    Mean Time Between Failure (MTBF):10,000 hours

    Network protocol and standard

    IEEE 802.3i 10BASET

    IEEE 802.3u 100BASETX

    IEEE 802.3x Flow Control

    IEEE 802.1af DTE Power via MDI

    IEEE 802.3af

    LEDs indicator

    PoE working status

    Power supply

    Total power consumption 16W(IEEE802.3af)/30W( IEEE802.3at)

    PoE Power output:15.4W(IEEE802.3af)/ 25.5W(IEEE802.3at)

    AC input power voltage:90~264V

    Physical specification

    440x260x1U

    Environmental Specifications

    Operating temperature:-5°~ 55°C ,Storage temperature :-40°~ 70°C

    Operating temperature:5%~90% , non-condensing, Storage temperature: 5%~90%, non-condensing
