Power over Ethernet

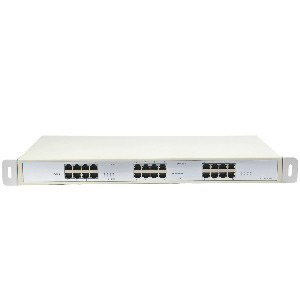

12-Port Gigabit PoE Midspan injector (IEEE802.3at)

12-Port Gigabit PoE Midspan injector (IEEE802.3at)
Per port power:36W/750mA
Pin: 4/5(+),7/8(-)
  • Details
  • Download
  • Main feature:
    Specially design for delivering power for wireless cameras and  AP over cat-5 cabling.
    10/100/1000Mbps “Data input”
    10/100/1000Mbps “Data + Power output”
    Complies with IEEE 802.3at
    Supports PoE power up to 36 Watts
    Remote power feeding up to 100 meters
    1U rack design, suitable for cabinet-mounted



    10/100/1000M POE Midspan Injector



    Network port

    12RJ45 ports

    PoE Power supply type

    Data provided over pairs over 1/2and 3/6 ,Power over spare pairs4/5(+) and 7/8 (-)

    Network Media

    10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

    100BASE-TX: UTP category 5, 5e cable (maximum 100m)

    1000BASE-TX: UTP category 5, 5e cable (maximum 100m)

    Performance specification

    PoE output voltage 53.5V

    PSE5201/PSE5201-at:operating rate 10/100Mbps

    PSE5201G/ PSE5201G-at:operating rate 10/100/1000Mbps

    Network port protection: Match with IEC61000-4-2(ESD)

    Mean Time Between Failure (MTBF):10,000 hours

    Network protocol and standard

    IEEE 802.3i 10BASET

    IEEE 802.3u 100BASETX

    IEEE 802.3x Flow Control

    IEEE 802.1af DTE Power via MDI

    IEEE 802.3af/at

    LEDs indicator

    PoE working status

    Power supply

    Total power consumption 16W(IEEE802.3af)/30W( IEEE802.3at)

    PoE Power output:15.4W(IEEE802.3af)/ 25.5W(IEEE802.3at)

    AC input power voltage:90~264V

    Physical specification


    Environmental Specifications

    Operating temperature:-5°~ 55°C ,Storage temperature :-40°~ 70°C

    Operating temperature:5%~90% , non-condensing, Storage temperature: 5%~90%, non-condensing
