Product

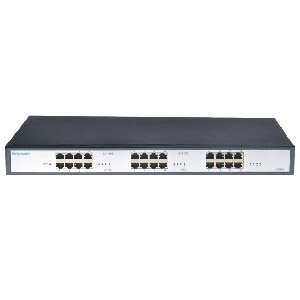

10/100M POE Midspan Injector

Model

PSEM-12T-300

Network port

12RJ45 ports

PoE Power supply type

Data provided over pairs over 1/2and 3/6 ,Power over spare pairs4/5(+) and 7/8 (-)

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

1000BASE-TX: UTP category 5, 5e cable (maximum 100m)

Performance specification

PoE output voltage 53.5V

PSE5201/PSE5201-at:operating rate 10/100Mbps

PSE5201G/ PSE5201G-at:operating rate 10/100/1000Mbps

Network port protection: Match with IEC61000-4-2(ESD)

Mean Time Between Failure (MTBF):10,000 hours

Network protocol and standard

IEEE 802.3i 10BASET

IEEE 802.3u 100BASETX

IEEE 802.3x Flow Control

IEEE 802.1af DTE Power via MDI

IEEE 802.3af

LEDs indicator

PoE working status

Power supply

Total power consumption 16W(IEEE802.3af)/30W( IEEE802.3at)

PoE Power output:15.4W(IEEE802.3af)/ 25.5W(IEEE802.3at)

AC input power voltage:90~264V

Physical specification

440x260x1U

Environmental Specifications

Operating temperature:-5°~ 55°C ,Storage temperature :-40°~ 70°C

Operating temperature:5%~90% , non-condensing, Storage temperature: 5%~90%, non-condensing
